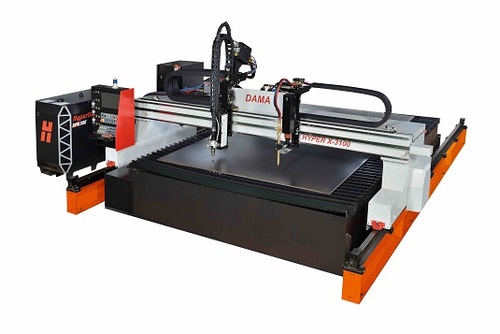

Hyper X Gantry Type Series

Features

1. Gantry design for heavy duty: Ensuring both precision and reliability.
2. Two full sized saddles, running on longitudinal guide rails: Giving high precision and durability.
3. High speed digital EtherCAT communicate interface between controller and digital AC servo drive system enhances overall machine system reliability, the positioning speed up to 18 M/min.
4. Linear guide for transverse precision and durability.
5. 300mm width transverse guide, stability and precision even with heavy torch suspension units.
6. Transverse energy feed chains: Giving efficient transportation of hoses and cables.
7. HYPER X set up with Edge Connect controller, Sensor THC plasma height sensor and XPR X-definition auto-gas plasma, provides high performance and achieve repeatable excellent cutting quality.
8. Phoenix Software built-in ProNest CNC which can automatically generate cut program from build-in 68 pattern or external DXF input. Also can automatically setting the process parameters of mild-steel,stainless steel and aluminum to ensure the best cutting performance.
9. User-friendly CutPro Wizard embedded.
10. DXF and DWG file can be input directly and through built-in ProNest CNC to process array nesting for single part. 19" touch screen and Windows 10 embedded operation system.
11. True hole cutting technique : for the mild steel cutting, the hole diameter can be processed 1-2 times thickness of the plate (below 26mm)without post-processing.
12. Option the VMI or OptiMix gas control console of XPR to achieve high quality cutting formild-steel,stainless steel and aluminum.
13. XPR Plasma status and diagnostics can be monitored from CNC controller or WiFi remote monitor.
